This project presents a customized Explosion-Proof Electric Wire Rope Hoist supplied to a long-term customer in Indonesia. Based on a solid cooperation history and trust built through previous equipment deliveries, this order further strengthens our partnership by addressing strict safety requirements and efficient delivery coordination for hazardous industrial environments.
Customer Background and Cooperation History
The client is an end user in the chemical industry, where safety, reliability, and compliance with explosion-proof standards are essential. The customer was originally acquired through an industry exhibition and has since established stable cooperation with us. Previously, we successfully delivered one 5-ton European single girder overhead crane, which performed reliably in daily operations.
For this new project, the customer emphasized three core values: fast response, high cost-performance, and customized solutions tailored to specific working conditions. These priorities guided the technical configuration and delivery planning of the current order.
Commercial Terms and Delivery Arrangement
To align with the customer’s production and shipping schedule, the hoist was arranged to be shipped together with an existing order referred to as the “912 order.” Sharing container space helped optimize logistics costs and simplify transportation management.
-
Customer source: Existing customer
-
Shipping method: Sea freight
-
Trade term: CIF Batam, Indonesia
-
Payment terms: 100% T/T paid before shipment of the 912 order
-
Delivery timing: Shipped together with the 912 order, before its dispatch
This coordinated shipping approach reflects close cooperation and flexible project management between both parties.
Main Equipment Configuration

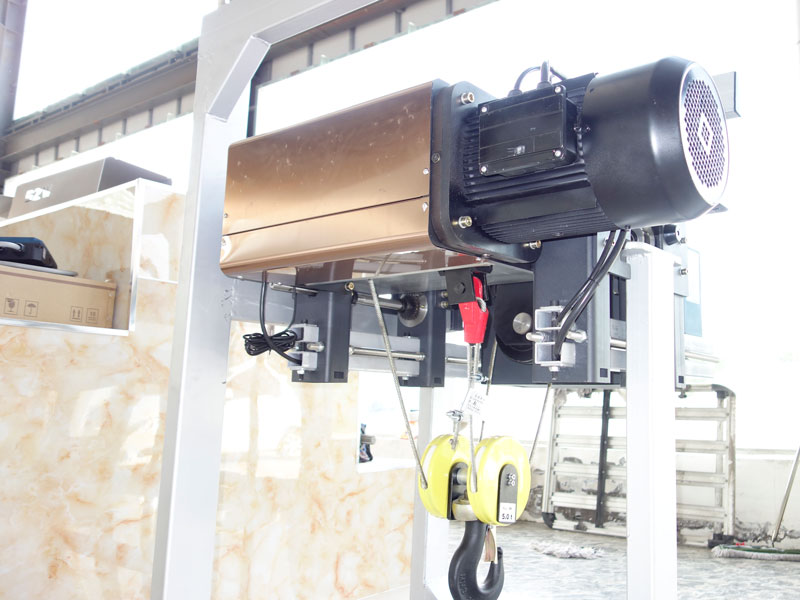

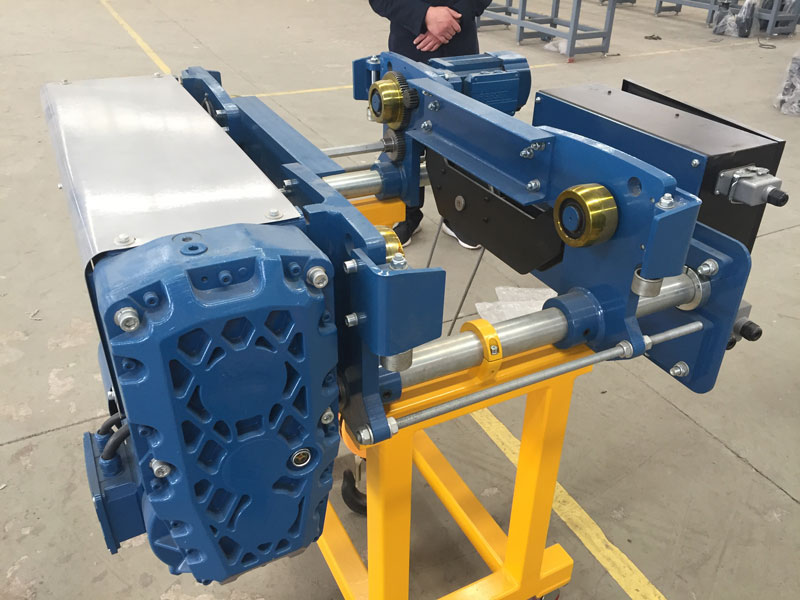

The core product supplied in this project is an HB Explosion-Proof Electric Wire Rope Hoist, specifically designed for safe operation in potentially explosive environments such as chemical plants.
Technical Specifications:
-
Product type: Explosion-Proof Electric Wire Rope Hoist
-
Model: HB
-
Duty class: M4
-
Rated capacity: 3 tons
-
Lifting height: 23.5 meters
-
Operation mode: Pendant control (ground control)
-
Power supply: 380V, 50Hz, 3-phase
-
Quantity: 1 set
The M4 working class ensures stable performance under frequent lifting conditions, making it suitable for equipment maintenance tasks within industrial facilities.
Explosion-Proof and Safety Features
Safety was the most critical consideration for this application. The hoist was manufactured to meet strict explosion-proof and protection standards required in chemical environments.
-
Explosion-proof rating: Exd IIC T4
This rating allows safe operation in environments containing flammable gases and vapors commonly found in chemical plants. -
Motor protection level: IP55
The enclosed motor design provides effective protection against dust and water splashes, ensuring long service life and reliable operation.
These features significantly reduce operational risks and ensure compliance with chemical industry safety regulations.
Customized Functional Requirements
To further match the customer’s on-site working conditions, several customized details were incorporated into the hoist design:
-
Pendant control cable length: 5 meters
This allows operators to maintain a safe and comfortable distance during equipment maintenance operations. -
Hoist power supply system:
The hoist is designed to work with a straight C-type steel power supply system, suitable for an 8-meter traveling distance. This configuration ensures stable power delivery and smooth operation along the designated working area.
Such customization demonstrates the flexibility of the Explosion-Proof Electric Wire Rope Hoist in adapting to specific site layouts and operational needs.
Application and Project Value
The hoist will be used primarily for equipment maintenance inside a chemical plant, where safe lifting of components and assemblies is essential for efficient upkeep. By combining explosion-proof design, reliable lifting performance, and tailored configurations, this solution helps the customer improve maintenance efficiency while maintaining the highest safety standards.
Conclusion
This project once again proves our capability to deliver a high-quality Explosion-Proof Electric Wire Rope Hoist that meets demanding industry standards and customer expectations. Through fast response, cost-effective solutions, and precise customization, we continue to support chemical industry customers with safe, reliable, and efficient lifting equipment—strengthening long-term cooperation and mutual trust.
