This project involves the supply of a Steel Portable Gantry Crane and a Pillar Jib Crane system equipped with a Trolley Type Electric Chain Hoist and Vacuum Lifter for a manufacturing facility in Bulgaria. The customer is an end user specializing in the production of battery energy storage systems, where safe, precise, and efficient material handling is critical inside the factory environment. Based on the customer’s clear technical requirements and application conditions, a customized lifting solution was delivered within a short production cycle.
Project Overview
-
First Contact Date: May 27, 2025
-
Export Country: Bulgaria
-
Delivery Term: EXW (Ex Works)
-
Delivery Time: 15 working days
-
Payment Terms: 100% T/T in advance
-
Application Location: Indoor factory use
The EXW delivery term provided the customer with maximum flexibility in logistics planning while allowing fast production and factory dispatch.

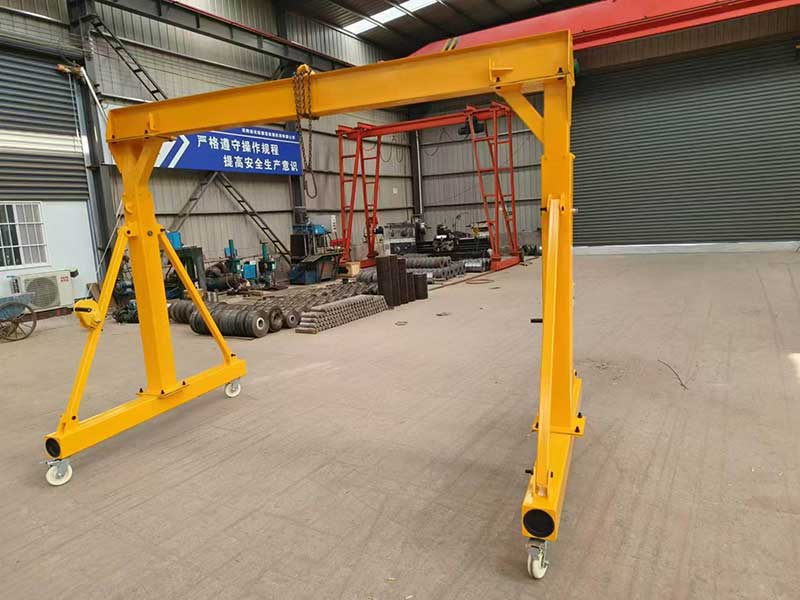

Steel Portable Gantry Crane Configuration
The first part of the supply is a fully electric steel portable gantry crane, designed for light to medium-duty lifting operations within confined factory spaces.
-
Product Type: Steel Portable Gantry Crane
-
Model: PT3
-
Duty Class: A3
-
Rated Capacity: 2 tons
-
Span: 1.8 meters
-
Lifting Height: 4.5 meters
-
Operation Mode: Pendant control
-
Power Supply: 400V, 50Hz, 3-phase
-
Quantity: 2 sets
This gantry crane is ideal for flexible material handling tasks where fixed overhead cranes are not available. Its steel structure provides excellent rigidity and stability, while the electric lifting system improves efficiency and reduces manual labor.
Pillar Jib Crane with Trolley Type Electric Chain Hoist
The second lifting solution is a pillar-mounted inclined jib crane, combined with a high-end trolley type electric chain hoist and a pneumatic vacuum lifter. This integrated system is designed for precise and ergonomic handling of lighter components.
-
Product Type: Pillar Jib Crane (inclined type)
-
Duty Class: A3
-
Rated Load: 200 kg
-
Jib Length: 5 meters
-
Lifting Height: 2 meters
-
Operation Mode: Pendant control
-
Power Supply: 400V, 50Hz, 3-phase
-
Quantity: 1 set
The trolley type electric chain hoist allows smooth horizontal movement along the jib arm, improving coverage and operational flexibility.
Vacuum Lifter for Sensitive Material Handling
To meet the customer’s specific handling requirements for battery components, a pneumatic vacuum lifter was integrated into the jib crane system.
-
Vacuum Pad Size: 830 × 690 mm
-
Vacuum Lifter Model: EGX-4R
The vacuum lifter enables safe, non-damaging lifting of flat or delicate materials, significantly reducing the risk of surface damage and improving workplace ergonomics. This solution is especially suitable for battery energy storage manufacturing, where components often have sensitive surfaces and strict quality requirements.
Design Reference and Production Control
Both the steel portable gantry crane and the pillar jib crane system were manufactured in accordance with approved reference drawings provided by the customer. The vacuum lifter design followed the images and specifications listed in the quotation. Strict quality checks were carried out during production to ensure dimensional accuracy, operational safety, and compatibility between all components.
Conclusion
This project highlights our ability to provide integrated lifting solutions, combining Steel Portable Gantry Cranes, Pillar Jib Cranes, Trolley Type Electric Chain Hoists, and Vacuum Lifters into a unified system tailored to customer applications. By understanding the customer’s industry, factory layout, and handling requirements, we delivered a reliable and efficient lifting solution that enhances productivity, safety, and operational efficiency within the battery energy storage manufacturing facility.
Post time: Dec-17-2025
